극저온 측면 입구 볼 밸브

고성능 극저온 측면 입구 볼 밸브를 찾고 있다면 대기자가 귀하의 요구를 충족시킬 수 있습니다. 우리는 1994 년 미국에 설립 된 대형 밸브 통합 공급 업체이며 2008 년에 중국에 입국했으며 Tianjin과 Wenzhou에 생산 기지가 있습니다. 우리는 풍부한 업계 경험을 보유하고 있으며 The Times와 보조를 맞추고 제품 품질을 보장하기 위해 업계 최고의 기술 및 생산 장비를 적극적으로 도입합니다.

문의 보내기

제품 설명

Cryogenic side entry ball valve is suitable for working conditions with temperature up to -196℃ and is widely used in liquefied natural gas, liquefied petroleum gas, air separation and other cryogenic industries. In production, we apply international advanced technology and adopt LIP SEAL sealing ring to keep the valve with excellent sealing performance in application. At the same time, this series of valves can realize online maintenance.

Implementation Standards

Design Standard	API 6D, BS 6364
End Connection	RF, RTJ, BW
Inspection & Test	API 598 & BS 6364
Face to Face	ASME B16.10
Pressure and Temperature Levels	ASME B16.34
Fire Safe	API 6FA, API 607
Low Leakage Standards	ISO 15848-1, API 622
Anti-Corrosion Design	NACE MR 0103, NACE MR 0175

Application

Size	1/2"-28", DN15-DN700
Pressure Rating	Class 150-2500, PN10-PN420
Operating Temperature	-196°C ~ 150°C
Application Range
Operator	Lever, Gear, Electric, Pneumatic
Body Material	A351 CF3, CF8, CF3M, CF8M, A182 F304, F304L, F316, F316L, etc.
Ball	A182 F304/F304L/F316/F316L+Ni60
Valve Seat Support Ring	A182 F304/F304L/F316/F316L/STL Overlay
Valve Seat Insert	PCTFE
Valve Stem	XM-19, Gr660 Ty2/HT

Performance Features

Key designs and technologies in cryogenic side entry ball valve:
● Lip-seal + packing double seal of valve stem can reduce the amount of packing.
● Finite element assisted design is used to obtain the optimal wall thickness of the extended valve cover to ensure the best cooling effect.
● The arc moon groove design of the extended valve cover increases the cooling area and enhances the cooling effect.
● The drip plate design increases the cooling area and prevents the packing from freezing; effectively prevents condensed water from dripping onto the valve body.
● Lip-seal + gasket double seal is set at the body cover connection to prevent leakage.
● The valve seat adopts DIB-2 structure, which can ensure that the pressure in the middle cavity is stably released to the specified side when the pressure exceeds the limit.
● The valve seat seal is a Lip-sea structure, which has both the elastic compensation of the spring and the low-temperature elastic sealing performance of PTFE, ensuring excellent sealing effect at low temperatures.
● The valve seat sealing surface is imported CTFE, which still has good elasticity at ultra-low temperatures to ensure that the seal does not fail.
● The extended bonnet and long handle structure design ensures better coaxiality of the ball handle, valve stem and bonnet, and more sensitive switching.
● All fasteners in contact with low temperatures are fully threaded.
● The surface of the ball is hardened to ensure that it will not be scratched at low temperatures.

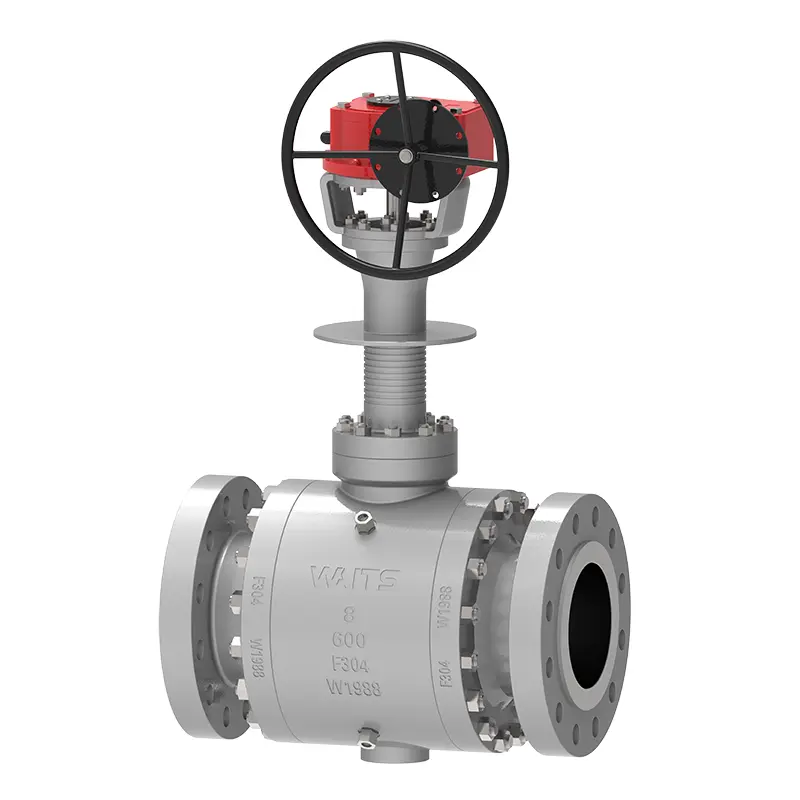

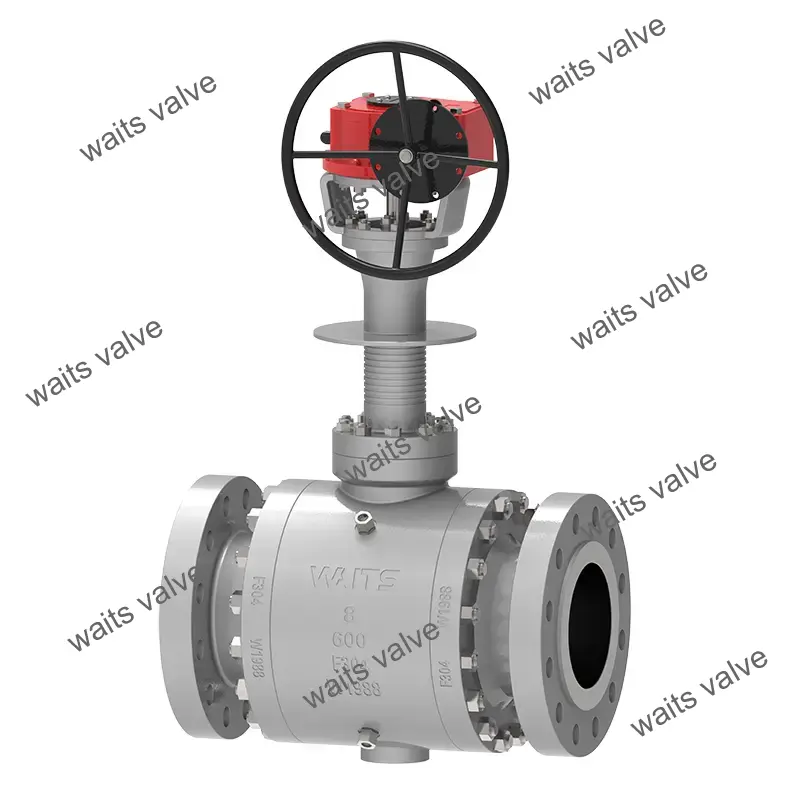

Cryogenic Side Entry Ball Valve
