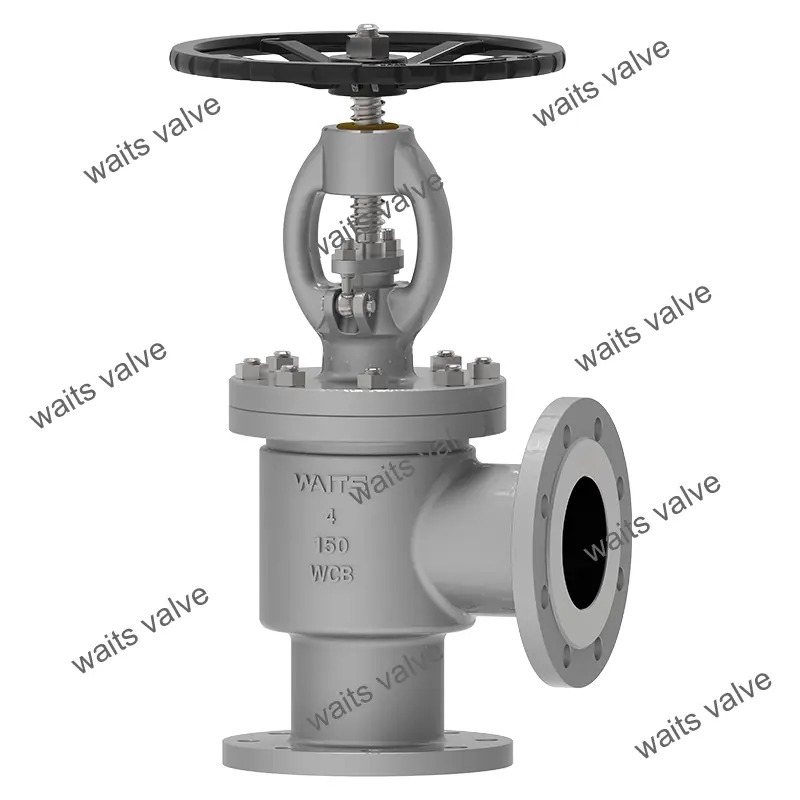

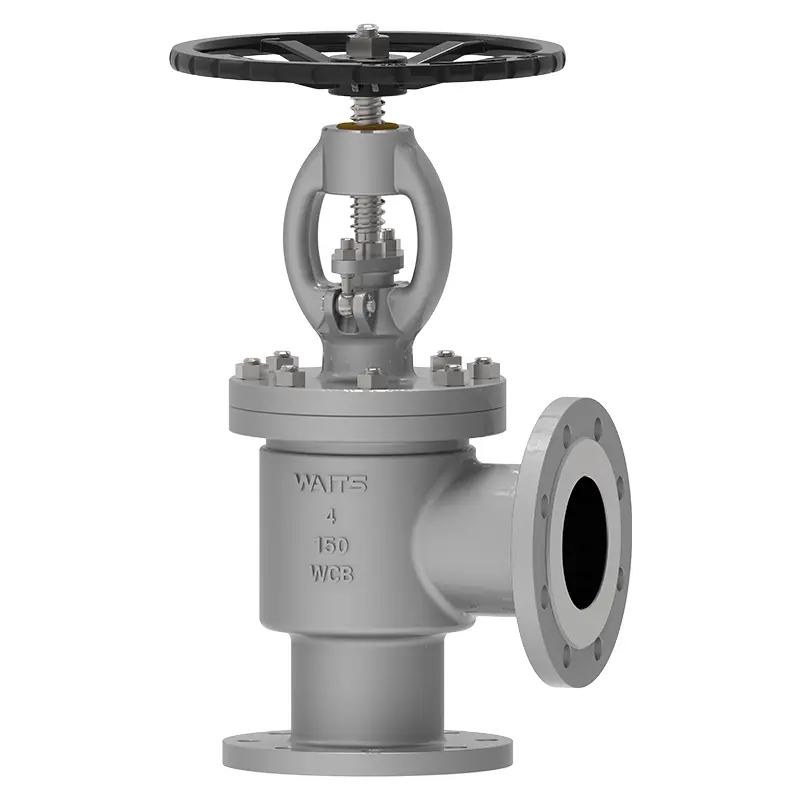

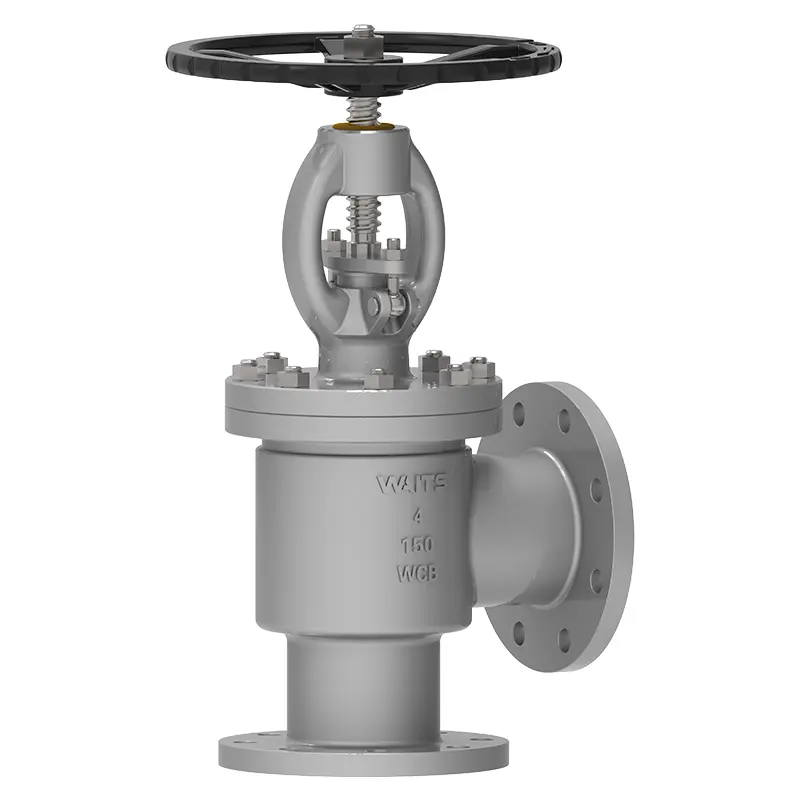

앵글 글로브 밸브

Waits Valve Angle Globe Valve can control the flow of fluid media by rotating the valve stem to raise or lower the valve disc. Its 90 degree right angle flow channel design breaks the traditional direct current valve structure, effectively reducing fluid resistance and energy consumption. In complex applications with limited installation space, its compact design has obvious advantages, saving engineers a lot of trouble and reducing time waste in this regard.

Angle Globe Valve is a stop valve design with inlet and outlet perpendicular to each other. It uses linear motion to move the closing piece in and out of the valve seat surface. Angle valves are commonly used for boiler feedwater and heater drain services, as well as pipeline valves with limited space. The valve can also be used as an elbow. The valve can be cage type, or with an enlarged outlet connection, a restrictive valve trim or an outlet liner to reduce corrosion, flashing or cavitation damage.

Performance Characteristics

In the fertilizer industry, the valve challenges in the production of urea and ammonia are corrosive media, crystallization and high pressure. Waits Valve developed Angle Globe Valves, which have the following advantages:

Low pressure drop, reduced crystallization

No dead angle, prevent corrosion

One-piece valve plate and valve stem, prevent dead angle between valve plate and valve stem

All-Stellite alloy valve plate surface, reduce wear

Bolted valve cover, Class A sealing valve body-valve cover and valve body-valve body flange gasket

Low emission valve stem packing

No aluminum/bronze parts

Body, body cladding iron based alloy, cladding hard-based alloy

Angle Globe Valves can be used for acid/alkali liquid, liquefied natural gas, high viscosity oil, underground pipeline network, equipment integration module, etc.

You can drive it by handwheel, bevel gear, electric, pneumatic, etc.
